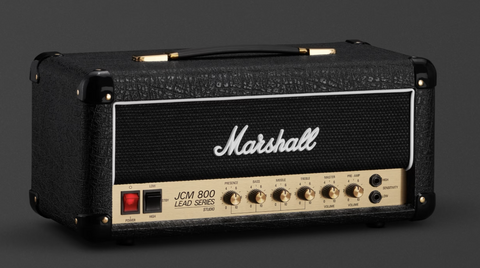

Marshall Studio Classic Head

General

• Model: SC20H
• Series: Studio Series
• Type: All-Valve Guitar Amplifier Head
• Made In: United Kingdom
• Color: Black

Power

• Output Power: 20 Watts
• Low Power Mode: 5 Watts

Channels

• Single Channel

Controls

• Preamp Volume
• Master Volume
• Treble
• Middle
• Bass
• Presence

Inputs

• 2 x 1/4" Instrument Inputs
  • High Sensitivity
  • Low Sensitivity

Outputs

• 5 x 1/4" Speaker Outputs
  • 16Ω
  • 8Ω
  • 4Ω
• 1 x 1/4" DI Output

Effects

• Series Effects Loop
• Switchable FX Loop

Tubes

• Preamp Tubes:
  • 2 x ECC83
  • 1 x ECC83 (Phase Splitter)
• Power Tubes:
  • 2 x EL34

Features

• JCM800 2203-Inspired Circuit
• All-Valve Design
• Master Volume
• Power Reduction Switch (20W / 5W)
• Compact Studio Series Chassis
• Designed and Engineered in the UK
• Made in the UK

Dimensions

• Width: 20.1" (510 mm)
• Height: 9.4" (240 mm)
• Depth: 9.4" (240 mm)
• Weight: 20.7 lbs (9.4 kg)

Included Accessories

• Detachable Power Cable
• Speaker Cable
